Powertrack Enclosed Chain Conveyor Systems

This range of conveyor systems incorporates the PT30, PT60, PT100 & PT100S. These systems are comprised of a bi-planar chain powered by a drive unit and running in an enclosed steel track which can either be rectangular in cross section or a cruciform shape where a higher load carrying capacity is required. Attached to the chain at regular pitches are pendants which protrude through a slot in the underside of the track and to which the product can be suspended.

Carrying capacities per pendant of 30Kg to 100Kg apply to the Powertrack PT range of conveyor systems although higher load can be accommodated by the use of loadbars connecting two or more pendants together thereby sharing the load between them.

The enclosed chain Powertrack range of conveyor systems will readily operate in temperatures up to 250 degrees Centigrade making them ideal for use where heat is applied to a product. They utilise the latest ‘shot type’ lubricators to dispense high temperature oil to ensure reliable operation is maintained in such arduous conditions.

The modular design of the Powertrack range of conveyor systems, which includes tight radii vertical and horizontal track bends, combined with bolted support and clamp assemblies gives these systems a high degree of layout flexibility and makes them easy and quick to install.

Modifications and extensions to existing conveyor systems can be made with minimum disruption and downtime.

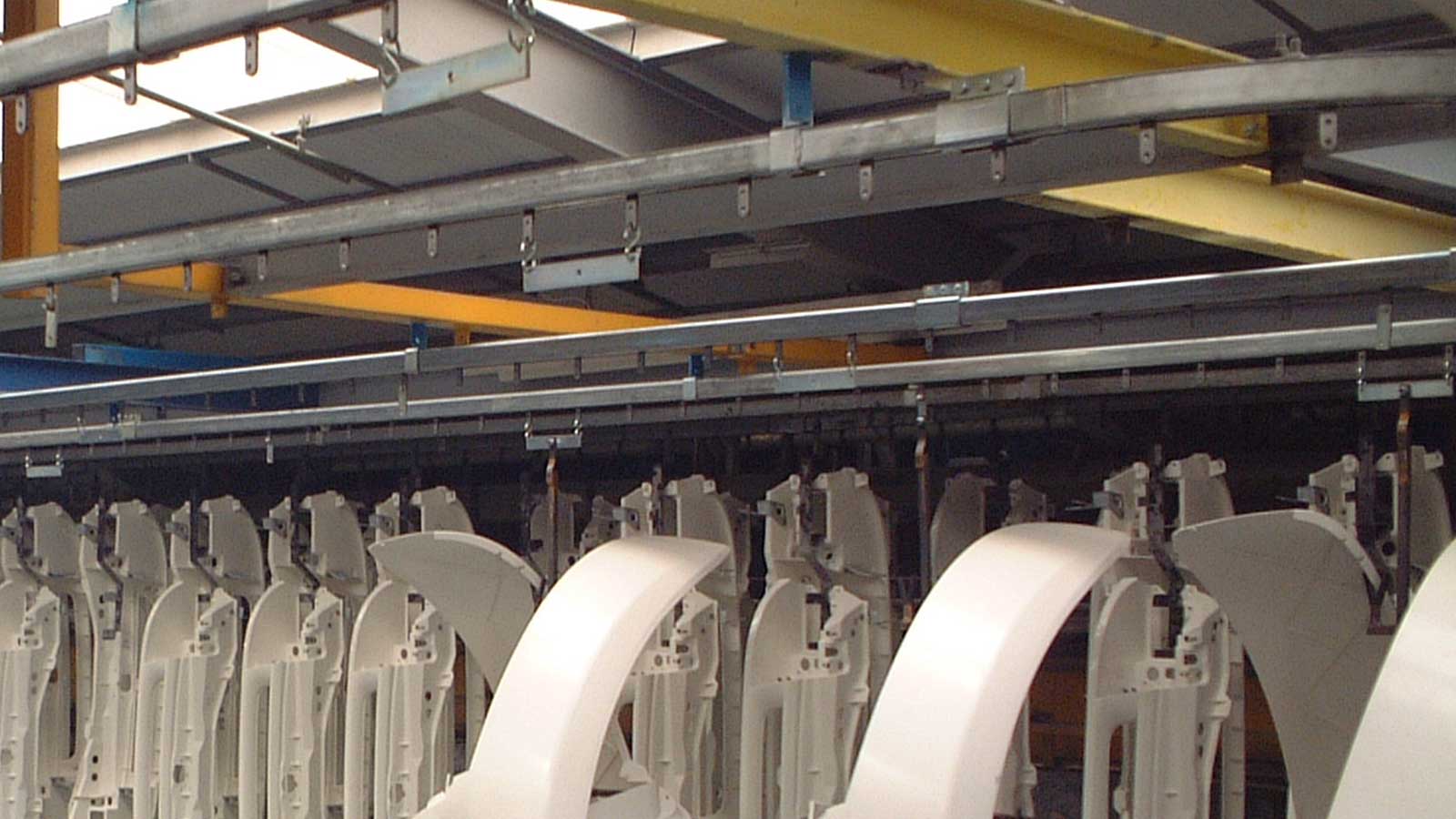

Enclosed Powertrack
Enclosed Powertrack
Enclosed Powertrack

Technical Data

Powertrack 'Enclosed Chain' Overhead Conveyors

Conveyor Model Pitch Load Capacity Data Sheets
Powertrack 30 229mm (9") 30Kg per pendant Download Powertrack 30 data sheet
Powertrack 60 229mm (9") 60Kg per pendant Download Powertrack 60 data sheet
Powertrack 100 406mm (16") 100Kg per pendant Download Powertrack 100 data sheet
Powertrack 100S* 406mm (16") 100Kg per pendant Download Powertrack 100S data sheet

* Higher chain pull characteristics.

Powertrack 'Enclosed Chain' Overhead Conveyors


Frequently Asked Questions About Powertrack Enclosed Chain Conveyor Systems

An enclosed chain overhead conveyor is a powered conveying system in which a continuous chain travels inside an enclosed steel track. Load-carrying pendants extend through a slot beneath the track, allowing products to be suspended and transported between manufacturing processes. MCM Powertrack enclosed chain conveyors provide a compact overhead handling solution for applications including surface finishing and general manufacturing.

An MCM Powertrack enclosed chain conveyor uses a drive unit to move a bi-planar chain through an enclosed steel track. Pendants attached to the chain at regular intervals project through a slot in the underside of the track and support the suspended products. The chain travels through horizontal and vertical track bends, allowing components to follow a predetermined route through production or finishing areas.

The main differences are their load capacities, pendant pitches and chain pull characteristics. Powertrack PT30 carries up to 30 kg per pendant and PT60 up to 60 kg per pendant, both with a 229 mm (9-inch) pitch. PT100 and PT100S carry up to 100 kg per pendant with a 406 mm (16-inch) pitch. The PT100S has higher chain pull characteristics, making it suitable for applications requiring greater chain pulling capability. The appropriate model depends on the loads, conveyor layout and operating requirements.

MCM Powertrack enclosed chain conveyors have individual pendant load capacities ranging from 30 kg to 100 kg, depending on the model. Heavier products can potentially be accommodated using loadbars that connect two or more pendants and distribute the weight between them. The permissible total load depends on factors including the number of supporting pendants, load distribution, chain pull and conveyor configuration, so each installation must be assessed against its operating requirements.

Yes. The MCM Powertrack enclosed chain range is designed to operate in temperatures up to 250°C, making these conveyors suitable for industrial processes involving elevated temperatures. High-temperature lubrication helps maintain reliable chain operation under demanding conditions. The conveyor and its associated components must be specified for the actual operating temperatures, exposure duration and conditions of the installation.

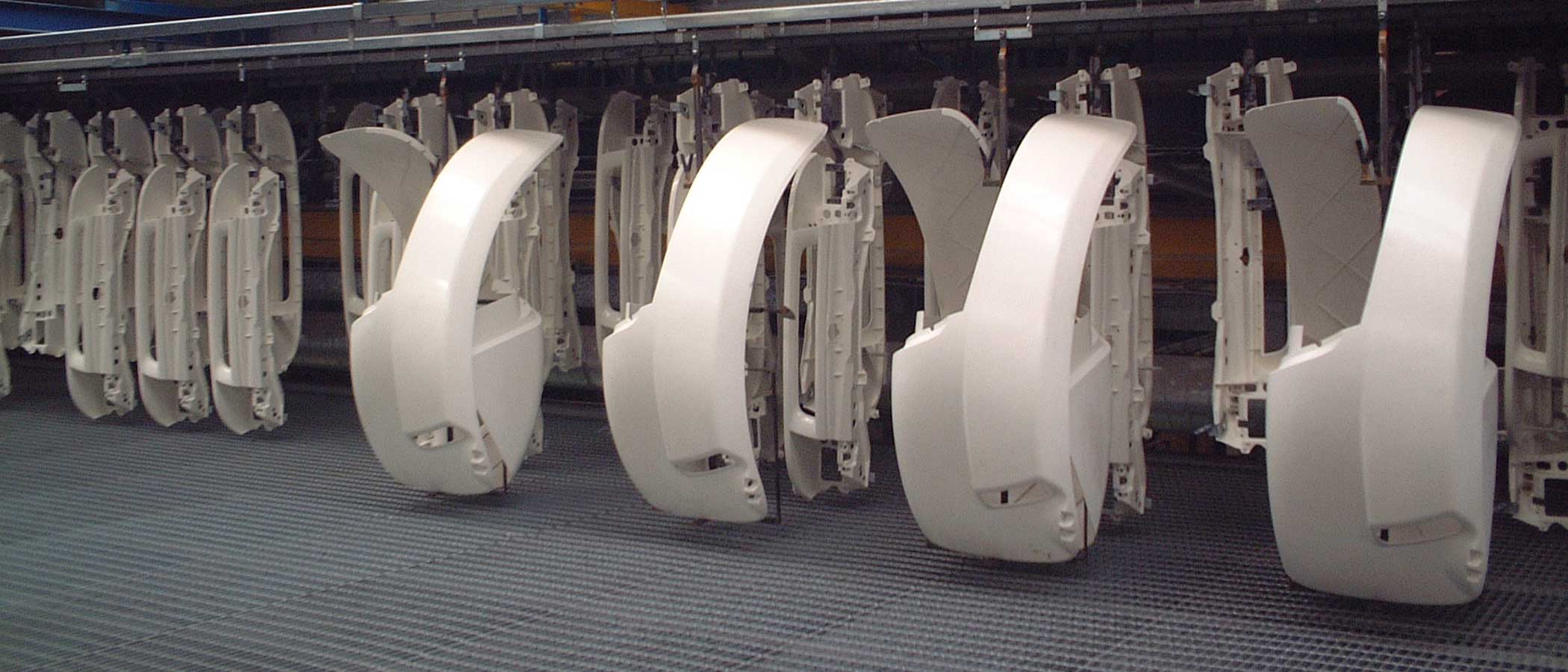

Yes. Powertrack enclosed chain overhead conveyors can be used to transport suspended components through industrial surface finishing processes, including heated stages such as curing ovens. Their overhead arrangement allows products to travel between processing areas while keeping the floor space beneath the conveyor available. Conveyor selection must account for product weight, line speed, operating temperature and the requirements of the finishing process.

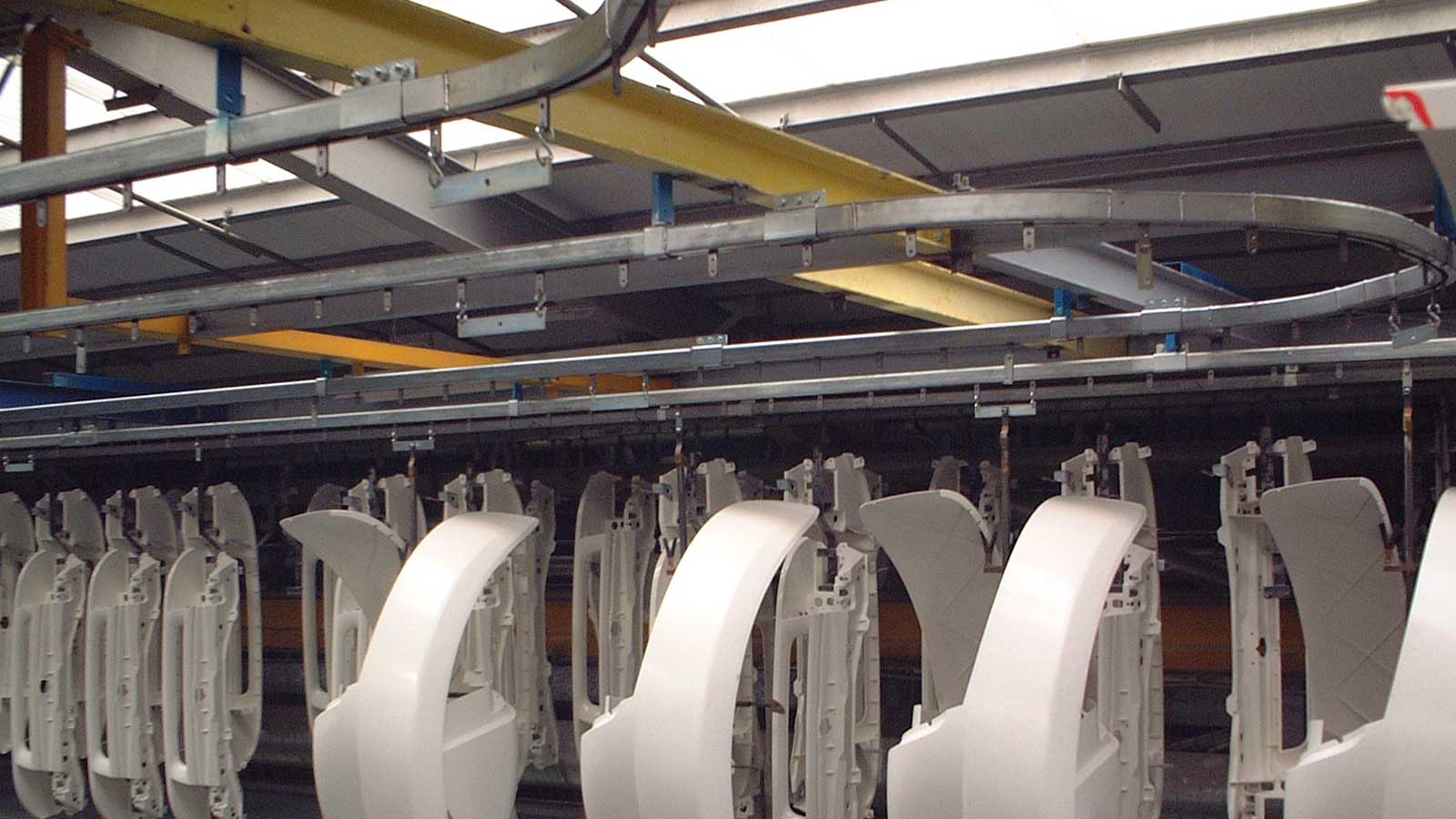

Yes. MCM Powertrack enclosed chain conveyors incorporate modular track sections and tight-radius horizontal and vertical bends, providing flexibility when routing conveyors around production equipment and through different working areas. Bolted supports and clamp assemblies also simplify installation. The final layout is designed around available space, product dimensions, required clearances and the conveyor's operating limits.

MCM Powertrack enclosed chain conveyors can use shot-type lubricators to dispense controlled quantities of lubricating oil to the conveyor chain. High-temperature oil is used where the system operates in heated environments, helping maintain lubrication under demanding conditions. The lubricant specification and lubrication intervals should be selected according to the conveyor model, operating temperature and application.

Yes. The modular construction of MCM Powertrack enclosed chain conveyors allows existing systems to be assessed for extensions, layout changes and other modifications. Bolted track supports and clamp assemblies help facilitate installation work with reduced disruption to production. Any proposed changes must take account of the existing conveyor's capacity, chain pull, drive arrangement and supporting structure.

Amber Industries can design, supply and install MCM Powertrack overhead conveyor systems to suit specific industrial handling requirements. System selection and layout can be based on product dimensions, suspended load weights, throughput, available factory space and operating conditions. Whether you are planning a new installation or considering modifications to an existing conveyor, contact Amber Industries to discuss your requirements.
